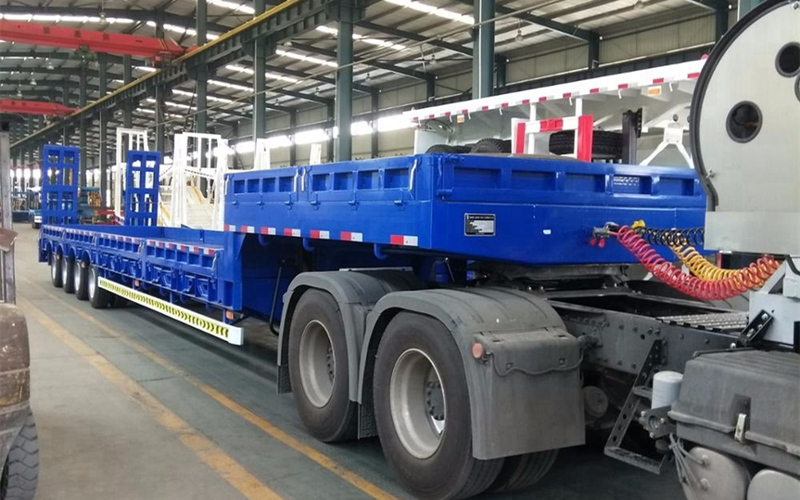

4 Axles Lowbed Loader 80 Tons Lowbed Trailer With 500mm Extender
Lowbed semi-trailers are usually used to transport heavy vehicles (such as tractors buses special vehicles etc.) rail vehicles mining machinery forestry machinery construction machinery (such as excavators bulldozers loaders paving machines cranes etc.) ) And other heavy-loaded goods the lower the center of gravity the better the stability and safety and the stronger the ability to transport ultra-high goods and pass overhead obstacles.

4 Axles Lowbed Loader 80 Tons Lowbed Trailer With 500mm Extender

PAYLOAD


20 tonnes to 100 tonnes


CHASSIS

Heavy duty and extra durability designed I beam;opting for high tensile steel ,welded by automatic submerged-Arc processes.Top flange 14mm-20mm,width 140mm; Middle flange 8mm-14mm; bottom flange 16mm-20mm; width 140mm


LOADING RAMP

 It is a pnemautic or hydraulic system. Ramp movement shall be provided by installation of a covered buton on to the tail part. Width of the ramp shall be 800 or 1000 mm according to lowbed


PLATFORM

Top middle part of the platform shall be covered by 3/4 mm thick metal sheet pursuant to utiliziation. Rubber or Hardwoods shall be installed onto the sides of the platform ( points where the pallet or wheels are) to provide maximum friction.


AXLE

– Is manufactured in accordance with the European standards.It has a carrying capacity of 12 to 20 tons and donated Brake lining. Axle is certificated by ISO 9001 and 100.000 km warranty.
– 2 axles with the capacity 12-14-16-20 tons, are used
– BPW, FUWA or local famous brand Axles
– There are brake shoes and heavy brake levers suitable for TSE norms


BRAKE SYSTEM

- Dual circuit brake hardware, 24” Service brake bellows fitted to axle 3 24×30” Emergency brake fitted to axle 1 and axle 2 Load balancing distribution valve, Automatic or manual brake adjusters
- WAbco ABS


SUSPENSION SYSTEM

Mechanical suspension or air suspension


ELECTRICAL SYSTEM

–  2×7 pin sockets – 24V, lights accord to standard in SAE rear stop lamps, side marker lamps, brake safety warning lamps and signal light fitted at the rear

2 tail & stop combined lamps (red)

2 turn signal combined lamps (orange)

1 license lamp (white)


FRONT AXLE LIFTING

Remote operated elevating system for front axle shaft in cabin


TIRES AND RIMS

–  11.00R20
–  12.00R20
–  11 R 22.5
–  12 R 22.5
–  315/60 R 22.5
–  385/60 R 22.5


KING PIN

–  JOST,  FUWA or local famous brand parking leg and king pin which is 3,5” suitable for 6×4 tractor
– King pin height will be arrange according to your tractor unit


PARKING LEGS

–  JOST,  FUWA or local famous brand parking leg


PAINT / COLOR

Before the painting trailer is sand blasted

ZincRich epoxy gray is used for first protecting.

1-2 Times of high quality paints are applied on trailer protects against humadity

The color of trailer is selected by our customer according to RAL codes


ACCESSORIES

– Load lushing ring
– 1 x tool box
– 2 x Bike safety bar
– Plastic or Steel Mudguards
– Parking chock with handle Ladder


OPTIONAL SPECIFICATIONS

–  Lowbed platform can be pooled type to load high loads
–  Extra spare tire conveyor
–  Extra oil tank
